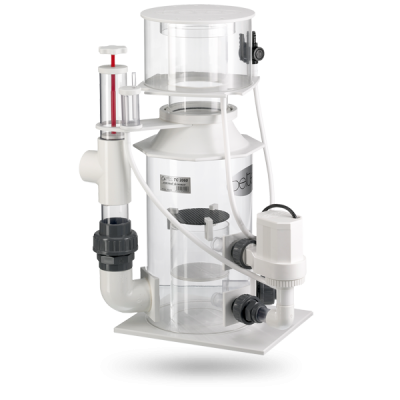

D-D Deltec TC-PRO 2000ix External AC Skimmer

D-D Deltec TC-PRO 2000ix External AC Skimmer

The TC name describes the special Twin Chamber design of the bubble chamber which is patented and has the benefit of pressurising the pumps for higher performance and ensuring that only unskimmed water passes through the pump rather than reskimming and reprocessing water in the chamber.

The new bubble plate design allows the height of the protein skimmers to be reduced compared with the current range to allow them to fit in a greater number of installations and cabinets. The primary use of the bubble chamber is to prevent turbulence from the skimmer body and neck as turbulence can pull waste-loaded bubbles back into the water column causing a reduction in efficiency. The air-to-water ratio is so high that there is an almost immediate reaction with the waste therefore there is no requirement for the tall reaction chambers found on some low air skimmers thus keeping the units compact.

Technical Data:
External Version

• The total height measurement includes around 20mm for cup removal
• Significantly exceeds the performance of AP701/AP851 (600 lts of air - 230V)
• Total air produced: 1100- 1300 lts/hour
• Power consumption: 19-22 watts.
• Footprint: 300mm by 240mm
• Footprint plus pipework: 406mm x 272mm
• Height under outlet pipe: 281mm
• Neck diameter: 110mm
• Tank Suitability: 1400 lts heavy stocking 1700 lts normal stocking
• Pipe connections: 32mm in - 50mm out
• Patented Twin Chamber bubble chamber
• Remote drain of skimmer cup
• Air silencer
• Micro-adjustable skimmer setting
• High water flow through the skimmer 2500 ltr/hr
• New colour scheme
• Can be gravity or pump fed (supply pump not supplied).
• Article no 80200000
