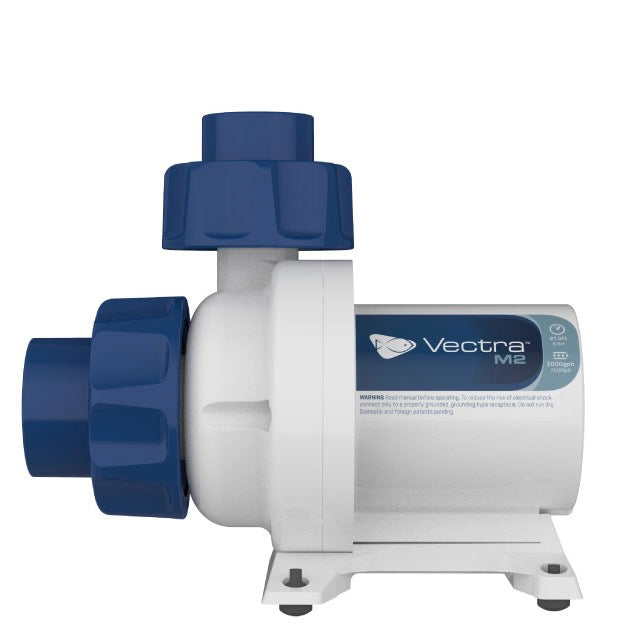

Ecotech Vectra M2 Centrifugal Pump

Ecotech Vectra M2 Centrifugal Pump with UK Type Cable

EcoTech Marine® has set new standards for the equipment in saltwater aquariums. The Vectra™ is no exception. The world’s smartest return pump can be run on a schedule, wirelessly give you updates on the operation and be automatically configured to work with your specific aquarium setup.

Specification:

Flow: 2,000 gph (7,500 lph)
Wireless: Included
Max Head Pressure: 21.5 feet (6.5 m)
Footprint: 4.5 in. x 7.5 in. (113.5mm x 192.6mm)
Fittings: Input: 1.25 in. (31.75 mm) Output: 1 in (25mm)

FLEXIBLE INSTALLATION

Included with the Vectra Pump are QuickCouple components,  these fitted couplers provide the flexibility to make installation, cleaning and adjustments a breeze. The Vectra also boasts the ability to rotate the volute of the pump to adapt to the needs of your plumbing setup.

• Easy Connection
• Fast Setup
• Quick Disassembly
• British Standard Pipe Threading

CAPABILITY

Calibration

The Vectra™ can be set to auto-calibrate to your tank. As a return pump, this smart feature prevents back siphoning if the pump is turned down and also provides a neutral flow condition in feed mode.

ESL via Mobile Device
All Vectra™ pumps are compatible with ReefLink. Reeflink provides completely wireless access to the world of EcoSmart® Live, the web-based aquarium command centre from EcoTech Marine®.

Battery Backup
Blizzard. Hurricane. A motorist hits a utility pole. Stuff happens. The power goes out… Vectra pumps are compatible with the EcoTech® Battery Backup accessory.

RETURN PUMP MODES

Constant Speed
Constant Speed mode is the default mode of the Vectra, this makes the pump produce flow at a constant speed that is determined by the position of the dial.

Feed Mode
At the touch of a button, the Vectra pump will temporarily pause the current mode and idle allowing food to be added to the tank without being cycled into the overflow and filtration.

Speed Lock
Speed Lock gives you the ability to lock in a desired speed on the pump by disabling the control dial protecting you from accidental and not so accidental unwanted changes in speed.

CLOSED-LOOP MODES

Lagoonal Random
Lagoonal Random mode simulates a low-energy lagoon environment. The speed of the pump is changed slowly to recreate the gentle currents of a lagoon.

Reef Crest Random
Reef Crest Random mode simulates a high-energy reef environment. The pump will change speed frequently and drastically to simulate crashing waves and surging tide. This is a favorite of SPS coral.

Gyre
Gyre mode creates a flow pattern consisting of uniform clockwise and counterclockwise flow levels pulsing at a selected interval between two seconds and two hours.
