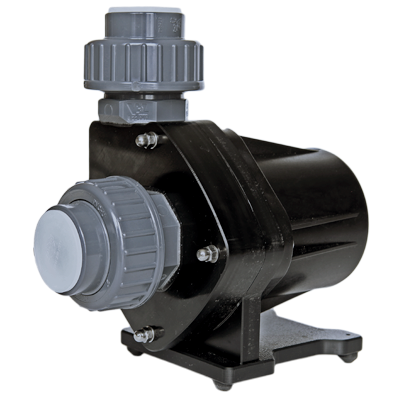

Deltec E-flow 10 (24v) 10,300l/h 9m Head

Deltec E-flow 10 (24v) 10,300l/h 9m Head

Deltec's new flagship series of true sine wave 24-volt pumps driven by brushless motors. The included controller can set power consumption and performance via a wattage display. The pump can either be installed inside or outside a sump. The new E-flow Pumps provide a high flow rate and pressure at low power consumption and are almost silent in operation.

E-Flow 10 - Silent running external and internal pump with a 10,300 lt/hr duty.

Features:

• Deltec E-Flow Pumps are almost silent in operation due to the all-new DC brushless motor.
• All Deltec E-Flow Pumps are protected by an over load protection circuit and if the impeller becomes blocked the pump is switched off automatically.
• All models include a control panel that allows the pump to be adjusted for power output . By using the up and down buttons on the control panel power output in watts can be adjusted electronically in 13 stages (E-Flow 10) down to 20 watts.
• If power is lost the pump will restart at its old power setting.

Made in Germany, built to perform

Deltec Products truly deserve their 'Made in Germany' quality label. All parts are manufactured using cutting-edge computer-controlled CNC milling machines thus ensuring consistent high-quality components and pumps that are built to last.

Technical Specifications:

• Volume max at 1.1 meters: 10,300 l/hr
• Water head max: 9.0 meters
• Performance selection: 13 stages
• Voltage: 24v
• Weight: 3.5 kg
• Pump dimensions: 195mm x 132mm x 212 mm (LxWxH)
• Controller dimensions: 190mm x 215mm x 65 mm (LxWxH)

Connections:

• Inlet/Suction: 40 mm
• Outlet/Pressure: 32 mm

Power Consumption:

• 20-130W
