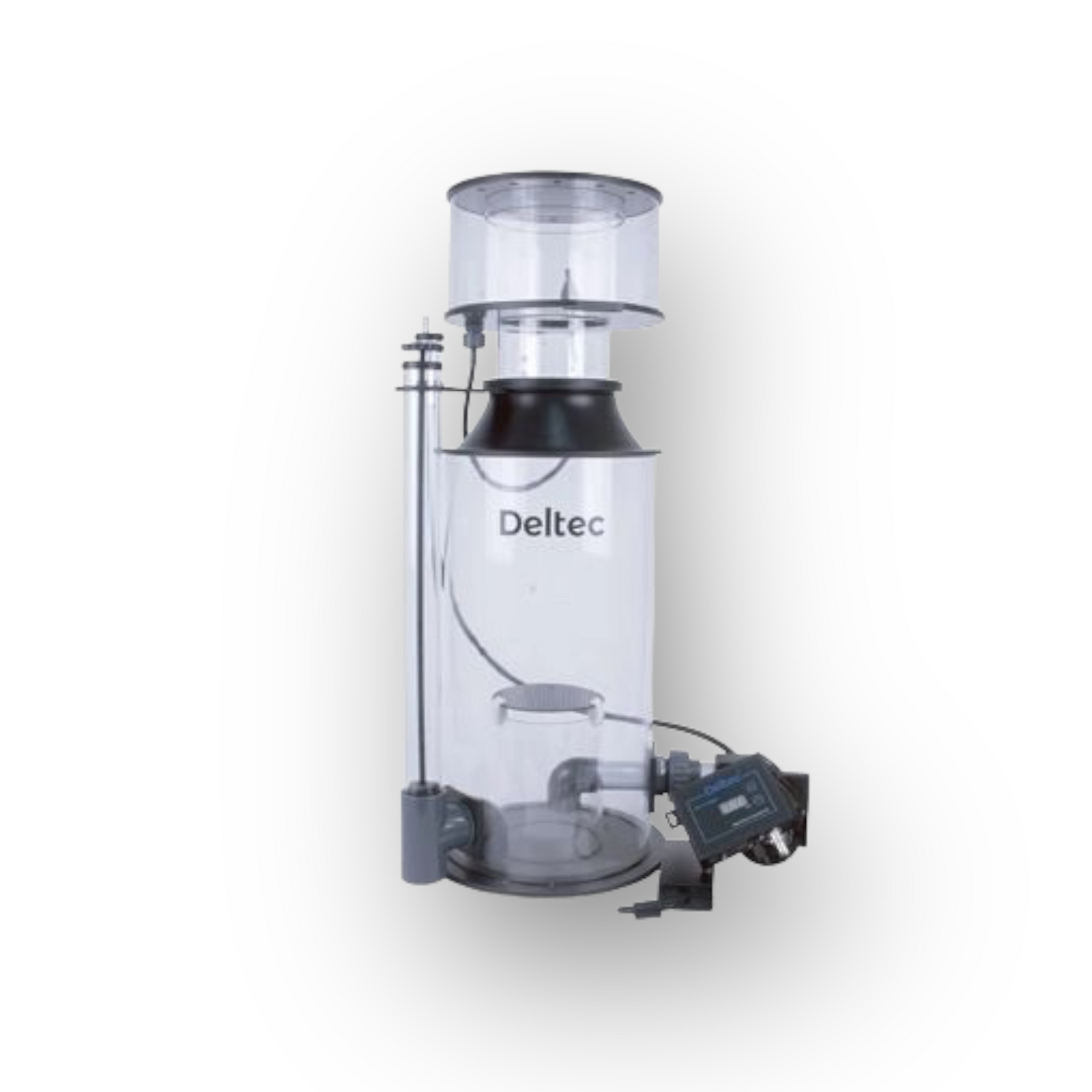

D-D Deltec TC-PRO 9000ix AC External Skimmer

D-D Deltec TC-PRO 9000ix AC External Skimmer

The new products have an E-T-A Ratio of around 60 to one and can produce 1500 lts of air per hour whilst using only 25W of power. Compare this with the current Deltec modified Eheim pumps, (already renowned for their performance), which only produce 600 lts of air for 36W of power and you will understand why we are so excited.

The TC name describes the special Twin Chamber design of the bubble chamber which is patented and has the benefit of pressurising the pumps for higher performance and ensuring that only unskimmed water passes through the pump rather than reskimming and reprocessing water in the chamber.

The new bubble plate design allows the height of the protein skimmers to be reduced compared with the current range to allow them to fit in a greater number of installations and cabinets. The primary use of the bubble chamber is to prevent turbulence from the skimmer body and neck as turbulence can pull waste-loaded bubbles back into the water column causing a reduction in efficiency. The air-to-water ratio is so high that there is an almost immediate reaction with the waste therefore there is no requirement for the tall reaction chambers found on some low air protein skimmers thus keeping the units compact.

Technical Data:
External Version

• The total height measurement includes around 20mm for cup removal
• Significantly exceeds the performance of AP1006
• Footprint: 470mm x 470mm
• Footprint plus pipework: 650mm x 470mm
• Height under outlet pipe: 275mm
• Total air produced: 5100-5700 lts/hour
• Power consumption: 99 watts - 111 watts
• Water feed/throughput: 9000 ltrs/hr
• Neck diameter TBC mm
• Pipe connections: 40mm in 63mm out
• Patented Twin Chamber bubble chamber
• Tank Suitability: normal stocking 10000 lts heavy stocking 8000 lts
• Remote drain of skimmer cup
• Air silencers
• Micro-adjustable skimmer setting
• High water flows through the skimmer
• The optional self cleaning system
• New colour scheme
• Can be gravity or pump fed (supply pump not supplied).
• Article no 80400000
